Inside DADI Factory - Part 4: How Prism and Reflectorless Measurement Paths Are Aligned
During total station assembly, DADI uses a self-developed calibration system to check and adjust the alignment between the prism-measurement path and the reflectorless-measurement path. The purpose of this step is to reduce relative pointing offset between the two measurement modes before the instrument moves to later calibration and inspection stages.
How Are the Two Measurement Paths Checked?
An engineer places the instrument on DADI's calibration bench and observes the relative position of the prism and reflectorless measurement paths on the diagnostic display. If the two modes show a visible offset, the instrument can be adjusted before it proceeds to subsequent calibration and inspection.

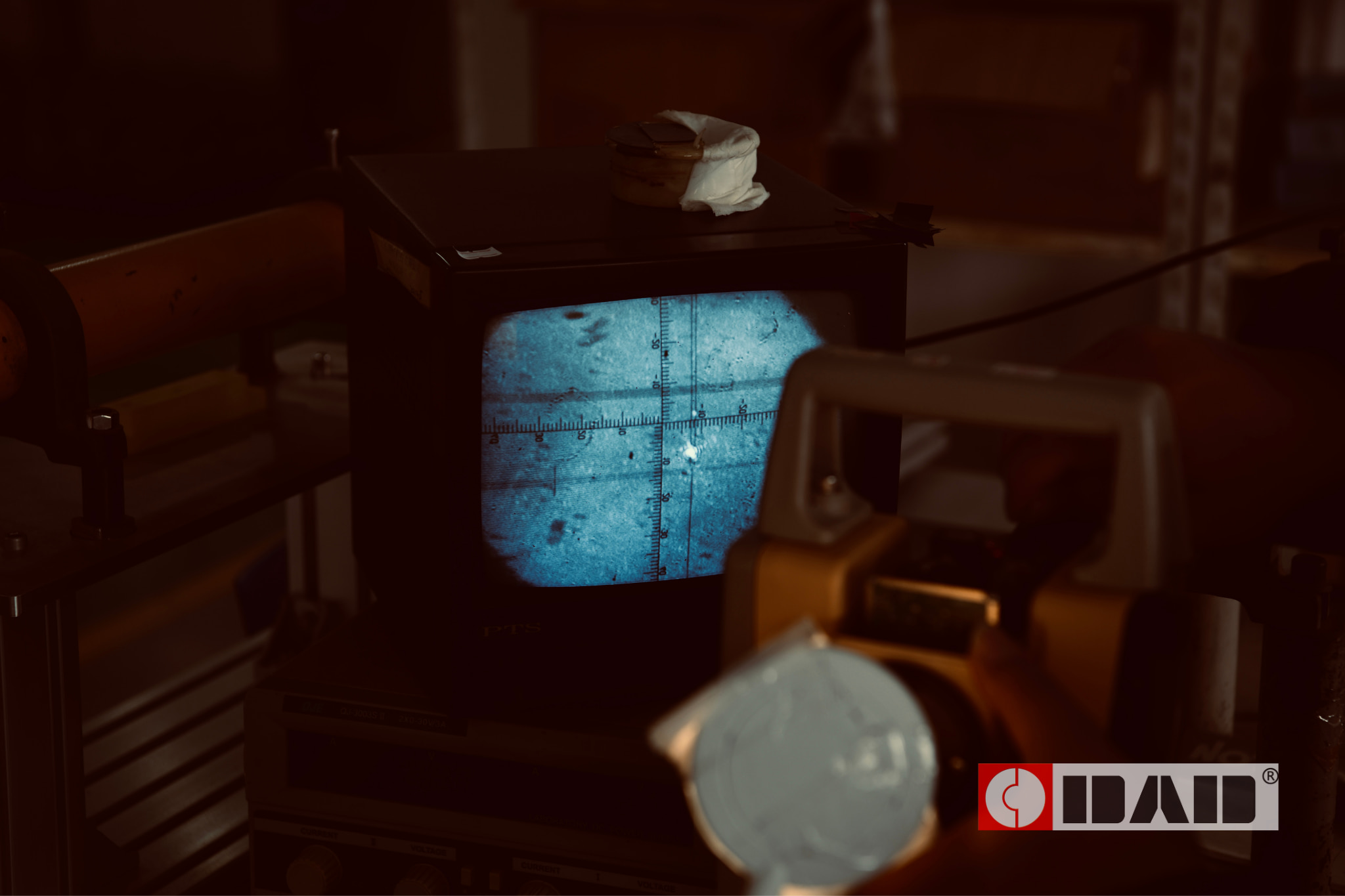

Figure 1. Alignment checking between prism and reflectorless measurement paths during total station assembly at DADI.
Why Does Alignment Matter When Switching Measurement Modes?
A total station may be used with a prism target in one measurement and then switched to reflectorless mode for a wall, structural surface or other target. If the two measurement paths are not well aligned, the effective aiming point can shift between modes. Factory alignment helps reduce this source of variation and provides a better starting condition for later instrument calibration.
Used when the instrument measures to a prism target and relies on the prism measurement path.
Used when the instrument measures directly to a surface without a prism.
Compares the relative position of the two measurement paths and allows adjustment if an offset is observed.
What Does the DADI Calibration System Do?
The self-developed calibration system is used as a production tool for observing and adjusting the relative alignment of the two measurement paths. The diagnostic display provides a visual reference for the engineer during the adjustment process.
DADI Engineering Note
This factory image documents a real alignment step inside DADI's total station assembly process. It shows an engineer using the calibration system to observe and adjust the relationship between prism and reflectorless measurement paths.
The available record does not provide a numerical coaxiality tolerance, final angular offset value or field accuracy result, so this article does not claim a specific alignment percentage or zero-shift performance.
Where Does This Step Fit in Total Station Production?
Measurement-path alignment is one part of the broader total station manufacturing and calibration process. It does not replace later optical, mechanical and electronic checks. Instead, it provides a controlled hardware condition before the instrument proceeds to subsequent calibration, verification and final inspection.
Frequently Asked Questions
Why are prism and reflectorless measurement paths aligned?
The alignment check is used to reduce relative pointing offset between the two measurement modes before later calibration and inspection.
Does this process guarantee zero shift between the two modes?
The available production record shows that DADI checks and adjusts the relative alignment of the two paths. It does not provide a numerical zero-shift specification, so no absolute zero-shift claim is made here.
Is this the final calibration step for a total station?
No. Measurement-path alignment is one production step. A total station still requires additional optical, mechanical, electronic and final inspection procedures.
