Inside DADI Factory - Part 3: How Horizontal and Vertical Axes Are Checked for Alignment
During surveying instrument assembly, DADI engineers use a laser collimator together with a rotational-axis concentricity tester to inspect the rotating mechanisms associated with horizontal and vertical angle measurement. The test allows the engineer to observe visible offset, drift or wobble relative to an optical reference before the instrument proceeds to later calibration and inspection stages.
Why Does Axis Alignment Matter in a Total Station or Theodolite?
Total stations and electronic theodolites measure angles around mechanical rotation axes. The condition of these rotating mechanisms is therefore part of the instrument's overall geometric setup. Factory axis inspection helps identify visible rotational offset or instability before the instrument moves into later optical, electronic and calibration procedures.

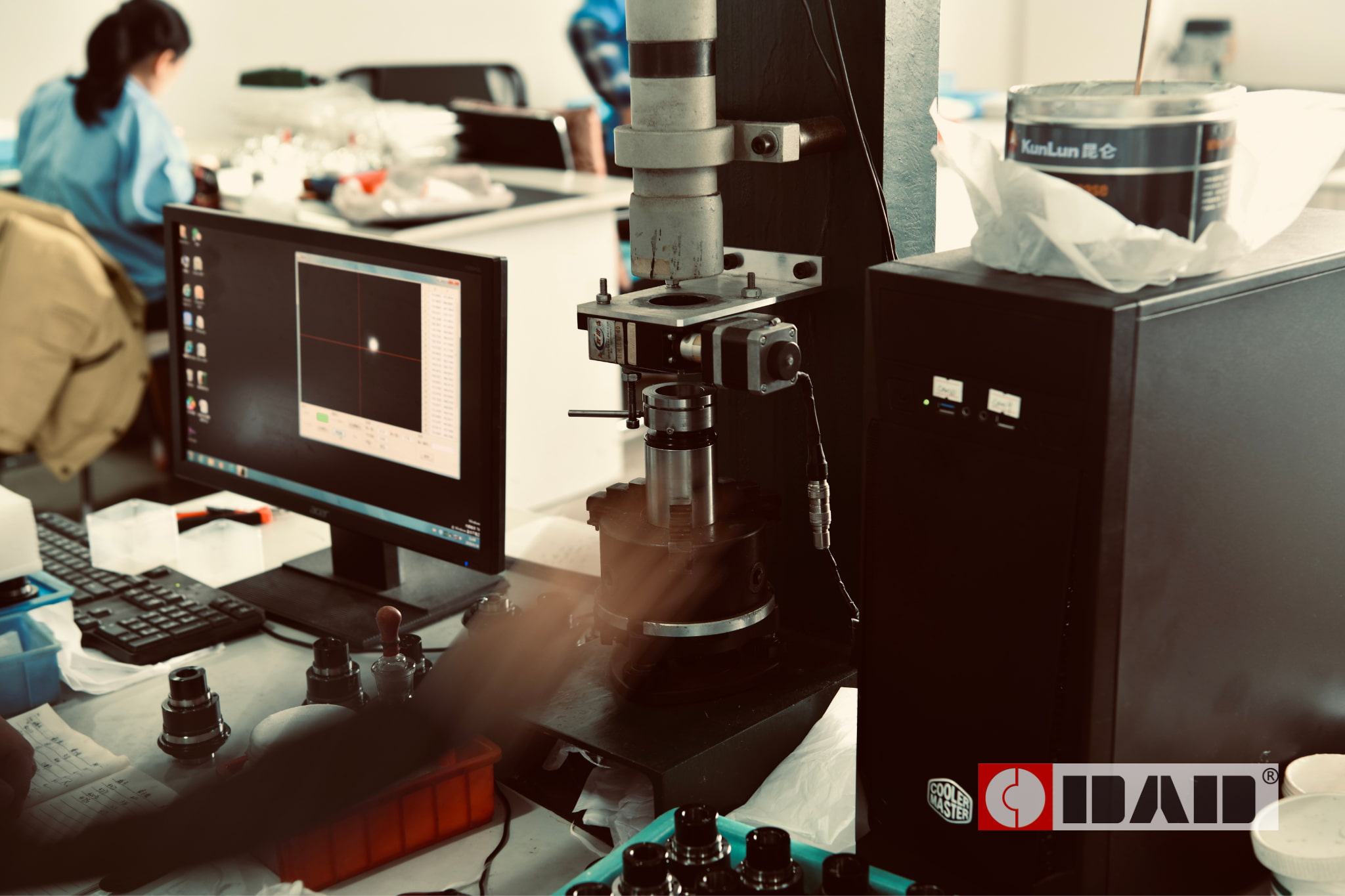

Figure 1. Axis alignment and rotational concentricity inspection inside DADI's surveying instrument assembly workshop.
How Does DADI Check the Rotating Axis Mechanisms?
In the factory process shown here, an engineer operates a laser collimator together with a rotational-axis concentricity tester. A collimated optical reference is observed while the relevant mechanism is rotated, allowing the engineer to check whether the rotation remains centered relative to that reference.
A laser collimator provides a stable optical reference for observing the rotating mechanism.
The mechanism is rotated while the engineer observes visible offset, drift or wobble relative to the reference.
If the observed condition does not meet the factory requirement, the mechanism can be adjusted before later calibration and inspection.
What Is Being Checked During the Test?
The test shown here focuses on the behavior of the rotating mechanisms used for horizontal and vertical angle observation. The engineer checks whether the rotation remains centered relative to the optical reference and whether visible drift or wobble appears as the mechanism turns.
DADI Engineering Note
The factory image on this page documents a real axis-inspection step inside DADI's surveying instrument production process. It shows dedicated optical and mechanical test equipment being used before the finished instrument reaches final calibration.
The available record documents the inspection method shown here, but it does not provide a numerical runout tolerance, concentricity tolerance or final angular-accuracy result. Those values are therefore not claimed on this page.
Which Instruments Require This Type of Axis Inspection?
This type of geometric inspection is relevant to surveying instruments that rotate around horizontal and vertical axes, including total stations and electronic theodolites. Axis checking is one part of a broader production sequence that also includes optical assembly, angle-system inspection, calibration and final quality checks.
Frequently Asked Questions
What is rotational-axis concentricity testing in a surveying instrument?
It is a check of whether a rotating mechanism remains centered relative to a reference as it turns. In the DADI factory process shown here, a laser collimator and rotational-axis tester are used for this inspection.
Why is a laser collimator used?
The collimator provides an optical reference that helps the engineer observe the position and stability of the rotating mechanism during the check.
Does axis inspection alone determine the final angular accuracy?
No. Axis inspection is one mechanical and geometric quality step. Final angular performance also depends on the angle-measurement system, assembly, calibration and other inspection procedures.
Which DADI products use horizontal and vertical rotation mechanisms?
DADI total stations and electronic theodolites use horizontal and vertical rotation mechanisms for angular observation.
