Model and Specification: DAD-DC-100A/ LPO9

Diameter of Objective Lens (Aperture): 36 mm (1.41inches)

Image: Erect

Field of view: 1°30'

Minimum Focus Distance: 1.2m(3.93 feet)

Laser effective range:
DAY: >120M (393.70 feet)
NIGHT: >25OM (820.21 feet)

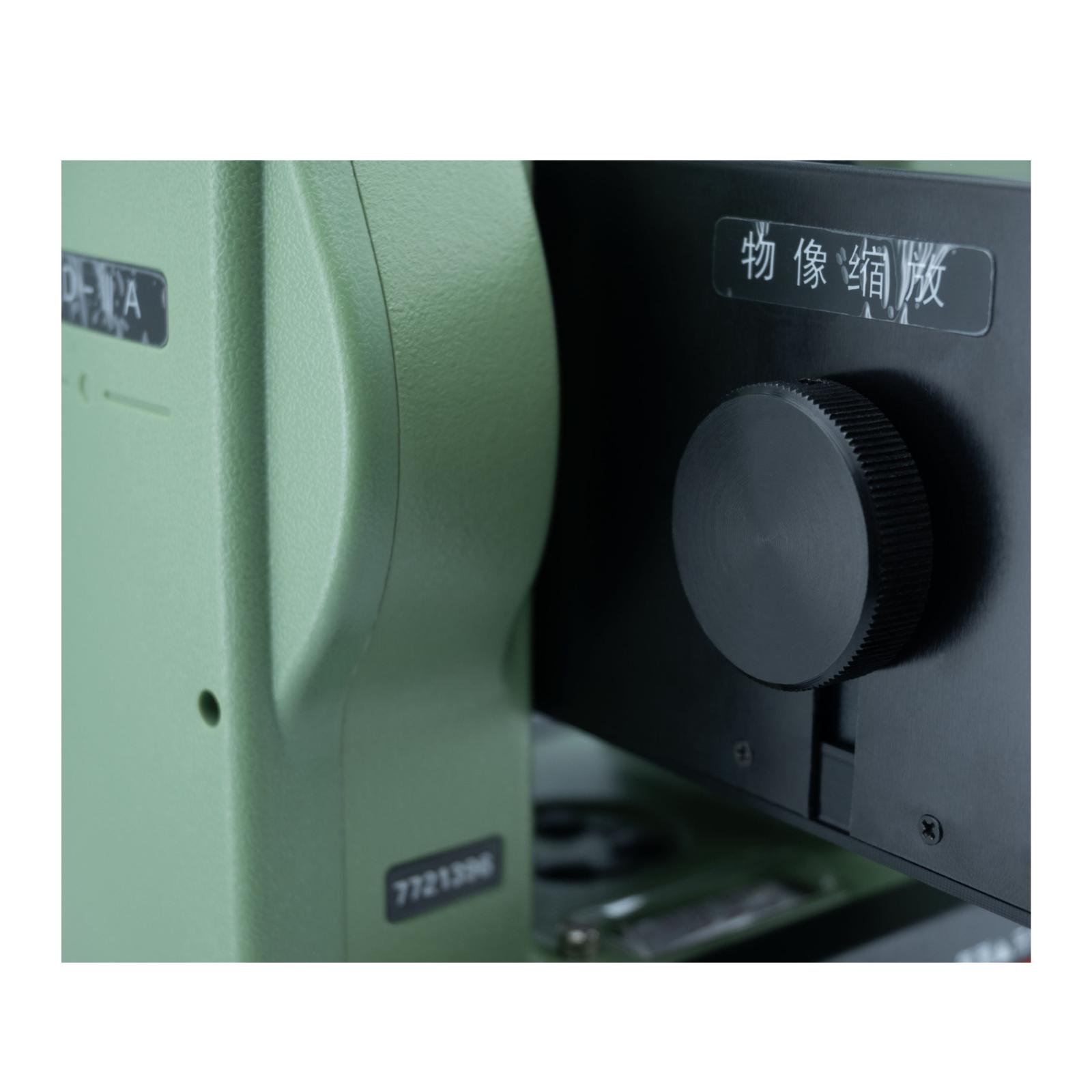

Equipment name - Pilot tube guidance system DSD IIIA(3A)

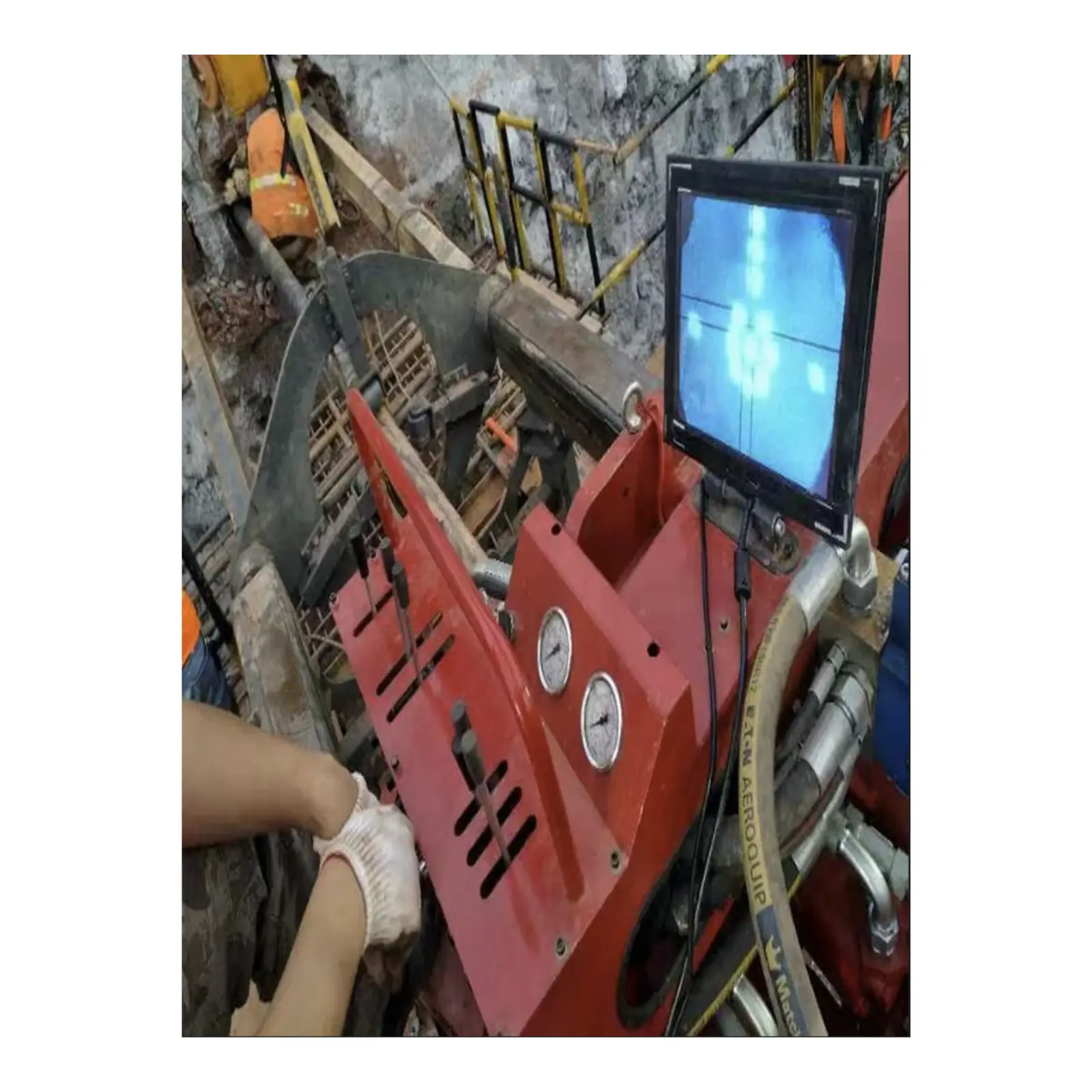

Application Scenarios: Construction, guidance, and calibration of small to medium-sized underground pipelines,Sewage pipeline construction,Pipe jacking construction for tunnels and subways

1 km Range: Green light spot size is less than 25mm.

Angular Accuracy: 2”.

Model and Specification: DAD-LPO9

Diameter of Objective Lens (Aperture): 36 mm (1.41inches)

Image: Erect

Field of view: 1°30'

Minimum Focus Distance: 1.2m(3.93 feet)

Laser effective range:
DAY: >120M (393.70 feet)
NIGHT: >25OM (820.21 feet)
