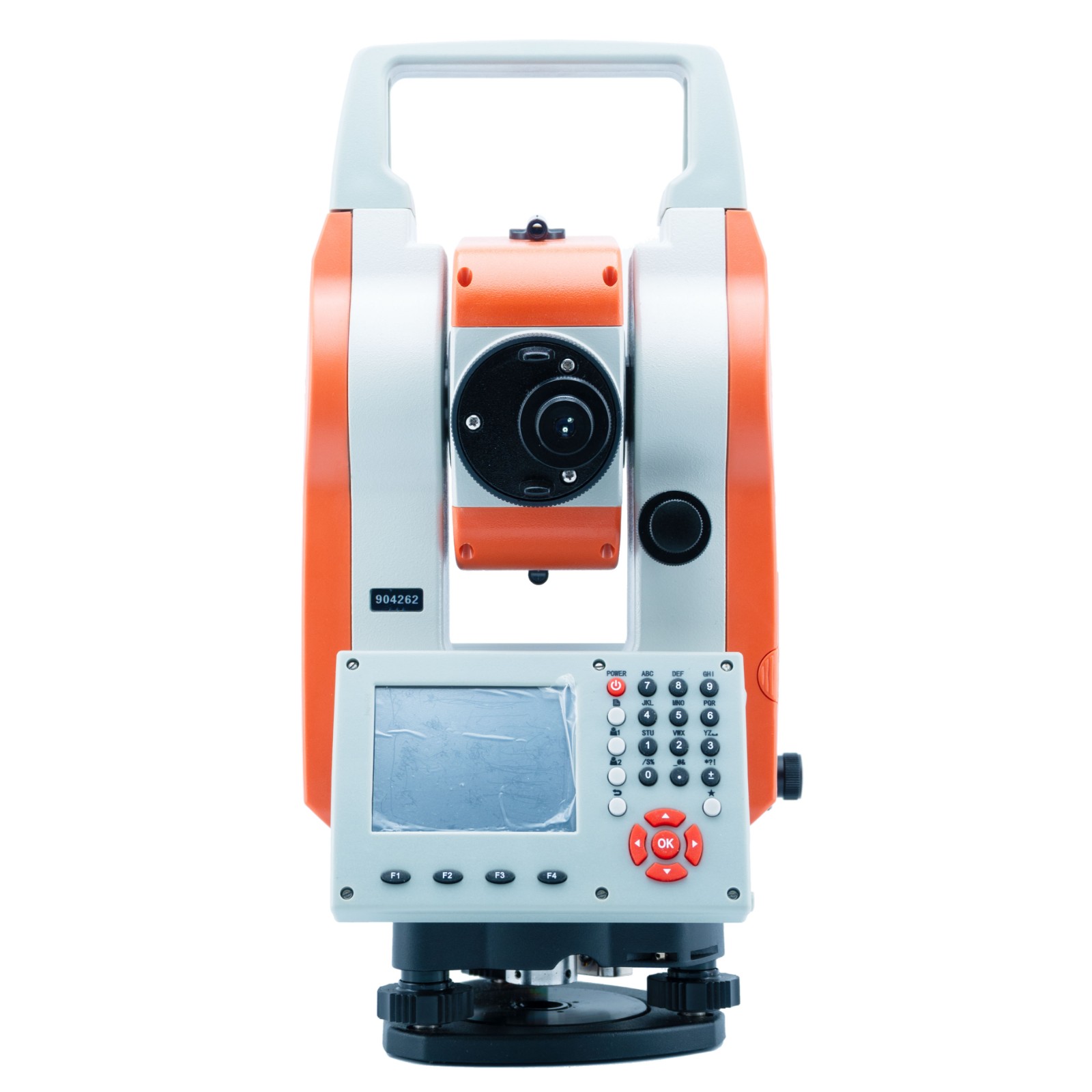

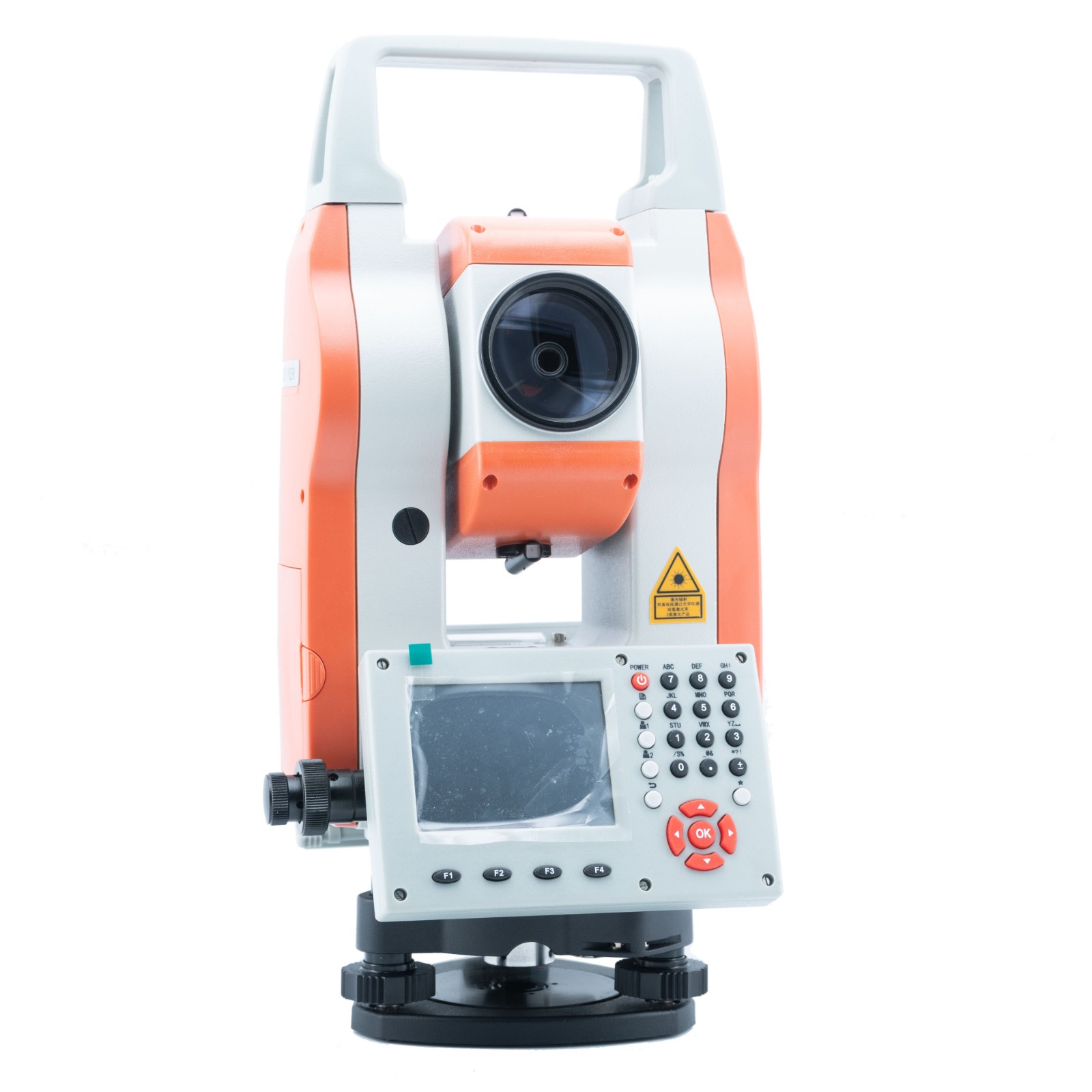

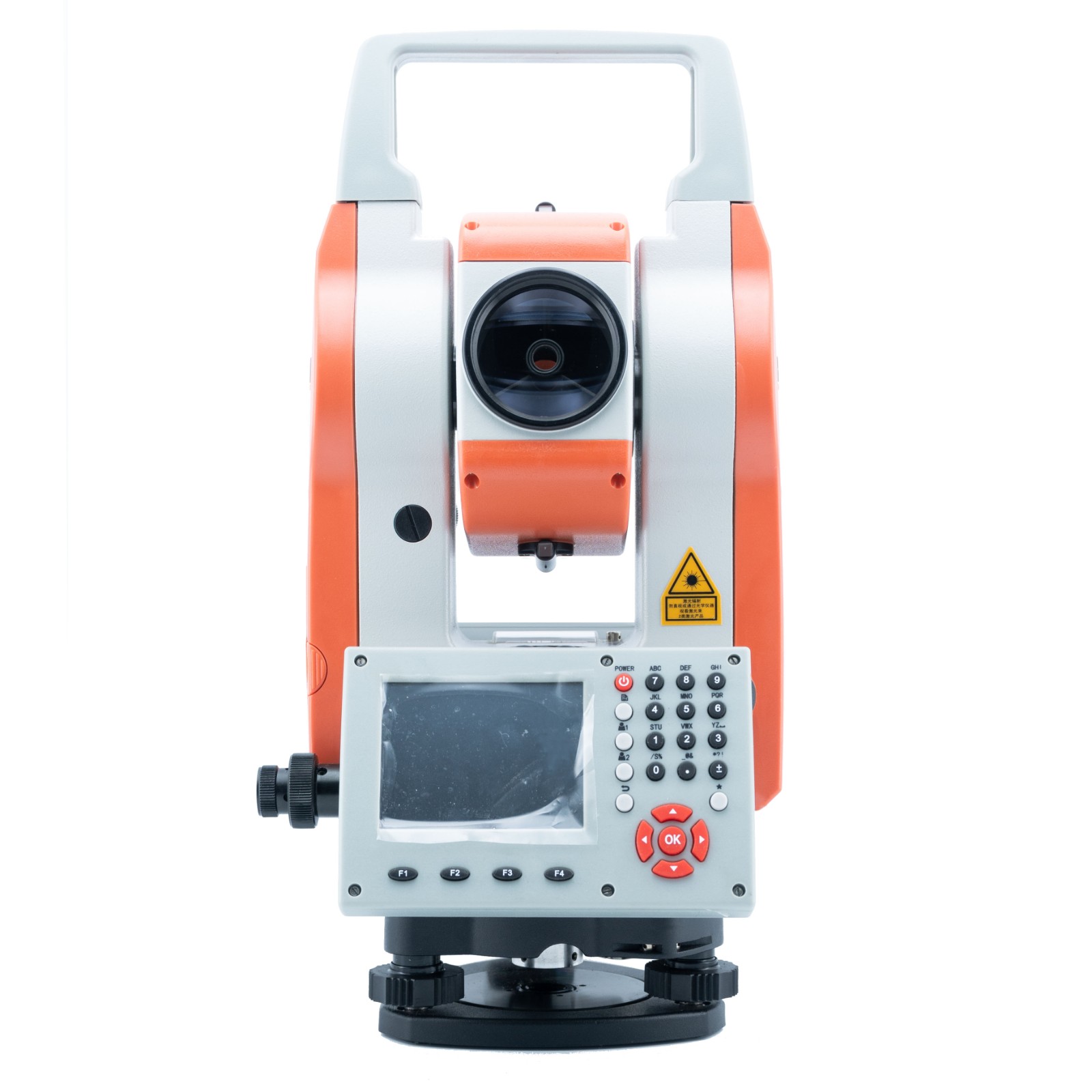

The DADI DTM 952R is a 2″ Windows CE total station designed for construction, engineering and land surveying. It combines up to 600 m reflectorless EDM, a 3,000 m single-prism range, a 30X telescope, absolute angle encoding and dual-axis compensation. The instrument runs Microsoft Windows CE.NET 7.0 with DADI Survey Pro-T software and supports Bluetooth, USB and RS-232C data communication.
The DADI DTM 952R is a 2" Windows CE total station for construction, engineering and land surveying. It combines up to 600 m reflectorless EDM, a 3,000 m single-prism range, a 30X telescope, absolute angle encoding and dual-axis compensation.
The instrument runs Microsoft Windows CE.NET 7.0 with DADI Survey Pro-T software and supports Bluetooth, USB and RS-232C communication for field data transfer and survey workflows.
A touch-screen interface running Microsoft Windows CE.NET 7.0 provides direct access to onboard survey functions and field data management.
Reflectorless measurement is available in 400 m / 600 m configurations under good conditions, with a 3,000 m range using a single prism.
The angle system uses an absolute encoder with 2" accuracy and 1" minimum increment.
Measurement time is 1.0 s in standard mode and 0.8 s in tracking mode.
A dual-axis liquid-electric compensator provides a compensation range of ±3′.

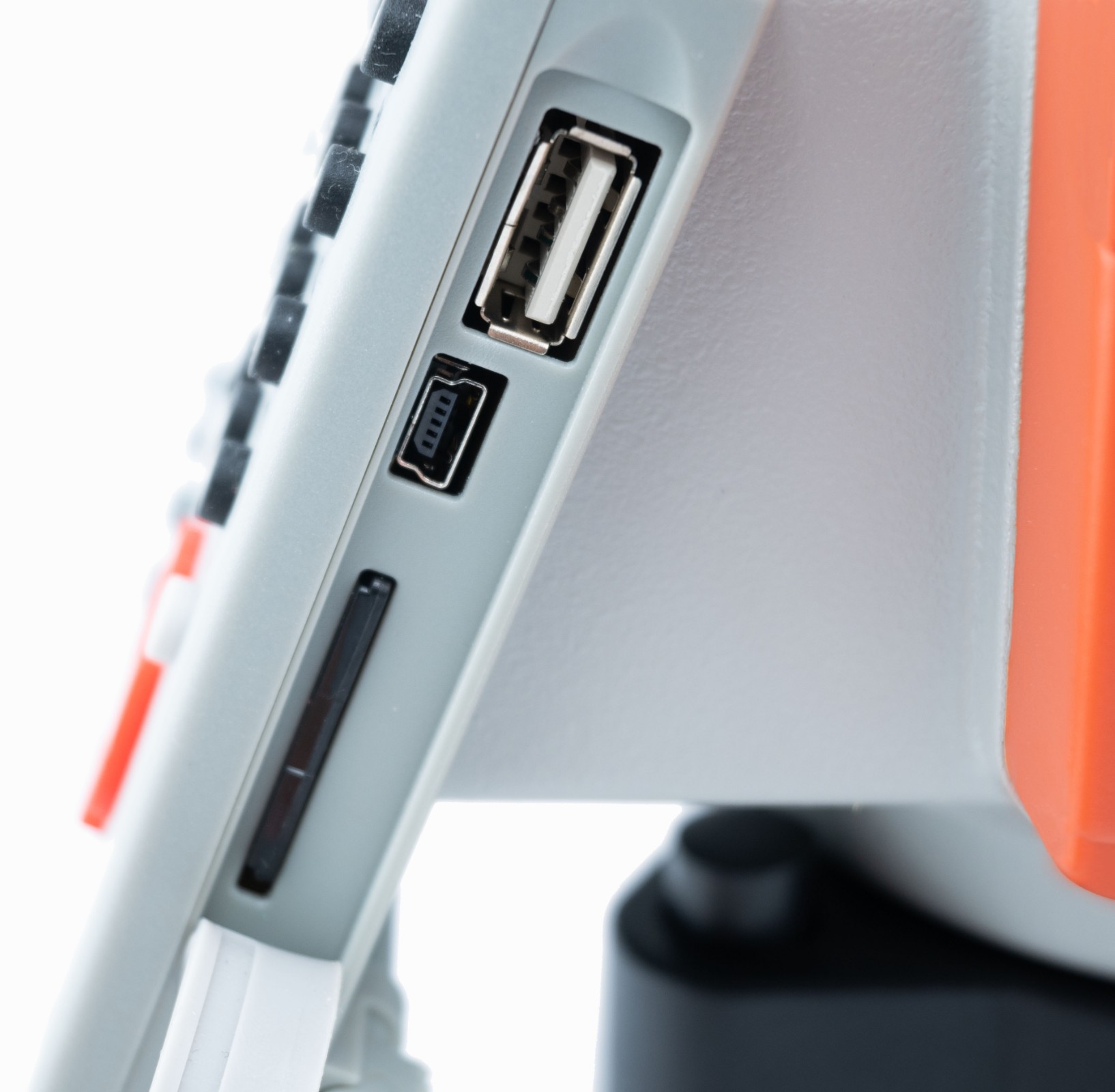

Integrated Bluetooth, one USB port and one RS-232C serial port support wireless and wired data communication.
DADI Survey Pro-T is installed on the DTM 952R for field survey work. The software supports coordinate geometry, staking and road design functions directly on the instrument.
The Windows CE environment, touch screen and multiple communication interfaces keep measurement, calculation and data transfer within one field workflow.
The DTM 952R combines absolute angle measurement, reflectorless EDM, dual-axis compensation and onboard field software in one instrument for construction and engineering surveying workflows.
| DISTANCE MEASUREMENT (EDM) | |
| Reflectorless Range | 400 m / 600 m under good conditions |
| Single Prism Range | 3,000 m under good conditions |
| Reflectorless Accuracy | 3 mm + 2 ppm · D |
| Prism Accuracy | 2 mm + 2 ppm · D |
| Measuring Time | 1.0 s standard / 0.8 s tracking |
| ANGLE MEASUREMENT | |
| Angular Accuracy | 2" (0.6 mgon) |
| Reading System | Absolute Encoder |
| Minimum Increment | 1.0" (0.2 mgon) |
| Angle Units | Degree / Mil / Gon / V% |
| Circle Diameter / Readout | 74 mm / Diametrical (Single) |
| TELESCOPE | |

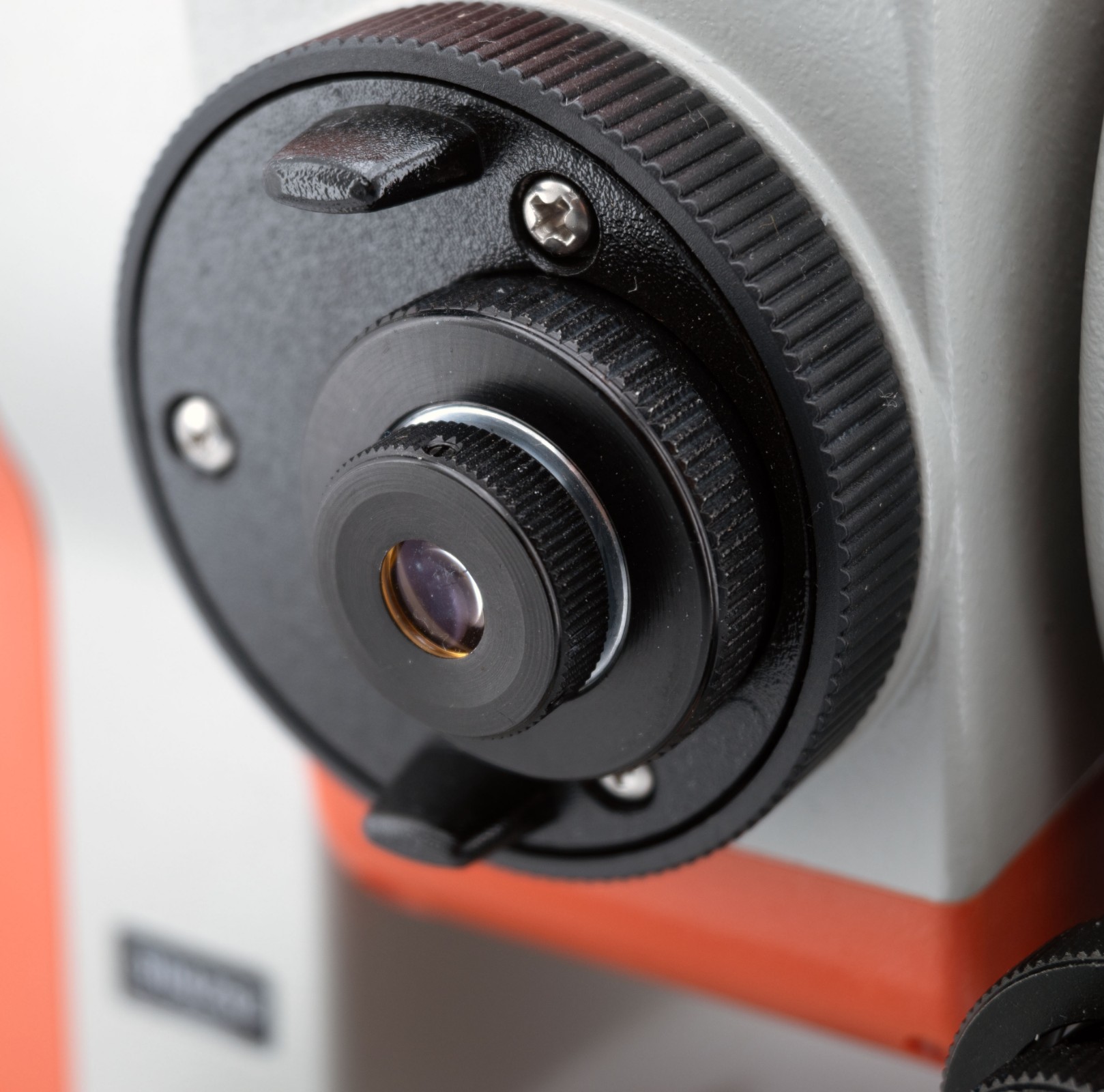

| Magnification / Image | 30X / Erect |
| Objective Lens Diameter | 48 mm |
| Minimum Focusing Distance | 1.5 m |
| Field of View / Resolving Power | 1°30′ / 3.5" |
| Reticle / Stadia Ratio | Crosshair / 100 : 0 |
| Laser Pointer | Coaxial red light |
| TILT SENSOR AND LEVELING | |
| Compensator | Dual-axis / Liquid-electric detection |
| Compensation Range | ±3′ |
| Tribrach Circular Level | 10′ / 2 mm |
| Tubular / Circular Level | 30" / 2 mm | 8′ / 2 mm |
| SYSTEM AND INTERFACE | |
| Operating System / Software | Microsoft Windows CE.NET 7.0 / DADI Survey Pro-T |
| Communication Ports | 1 × RS-232C, 1 × USB, Integrated Bluetooth |
| Internal Plummet | Class 2 Laser (1.5 mm @ 1.5 m) |
| POWER AND PHYSICAL | |
| Battery / Output Voltage | 2 × rechargeable Li-ion batteries / 3.6 V |
| Approx. Charge Time | 6.5 h |
| Dimensions (W × D × H) | 180 × 175 × 355 mm |
| Weight | Main unit 6.5 kg / Battery 0.2 kg / Case 1.7 kg |
| Operating Temperature | -20°C to +50°C |
| Storage Temperature | -25°C to +60°C |
The DTM 952R runs Microsoft Windows CE.NET 7.0 and includes DADI Survey Pro-T field software.
The DTM 952R is available with 400 m / 600 m reflectorless EDM configurations under good conditions.
The specified single-prism range is 3,000 m under good conditions.
Yes. Integrated Bluetooth is provided, together with USB and RS-232C interfaces for wired communication.
The DTM 952R uses an absolute encoder with 2" angular accuracy and a 1" minimum increment.
What's in the Box
DADI DTM952R Total Station (2-Second)
Hard Carrying Case
Toolkit with Cleaning Cloth (For Lens), Screwdriver and 1 Needle
Rubber Dust Blower Ball
Total Station to PC-USB Cable
2 x Rechargeable Li-ion Batteries
Battery Charger
User Manual
Surveying accessories
Tripod | J-1A |
| |
Staff | 3m |
| |
Prism | AK18-1 |
| |
| Triple | TPS30-Y |  |
