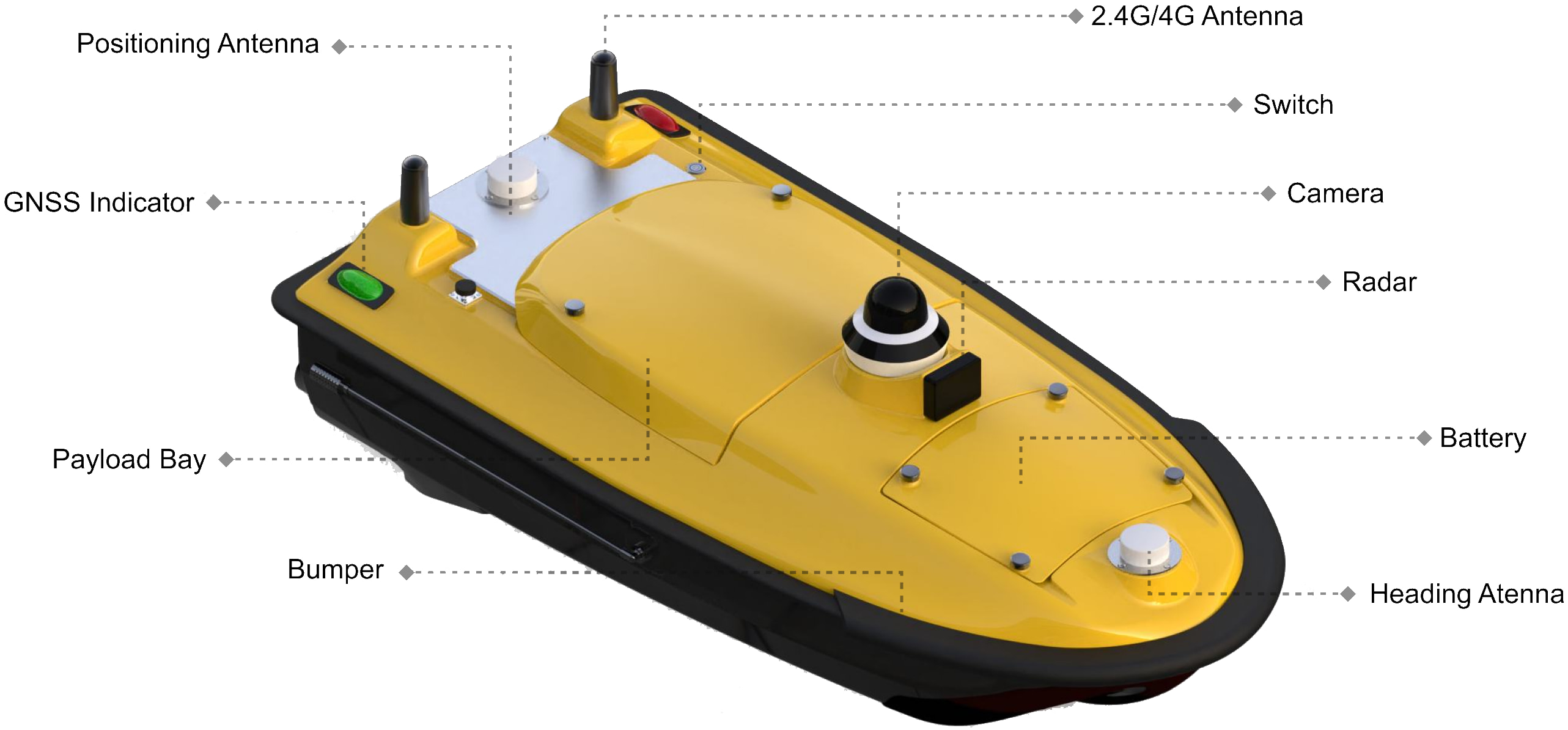

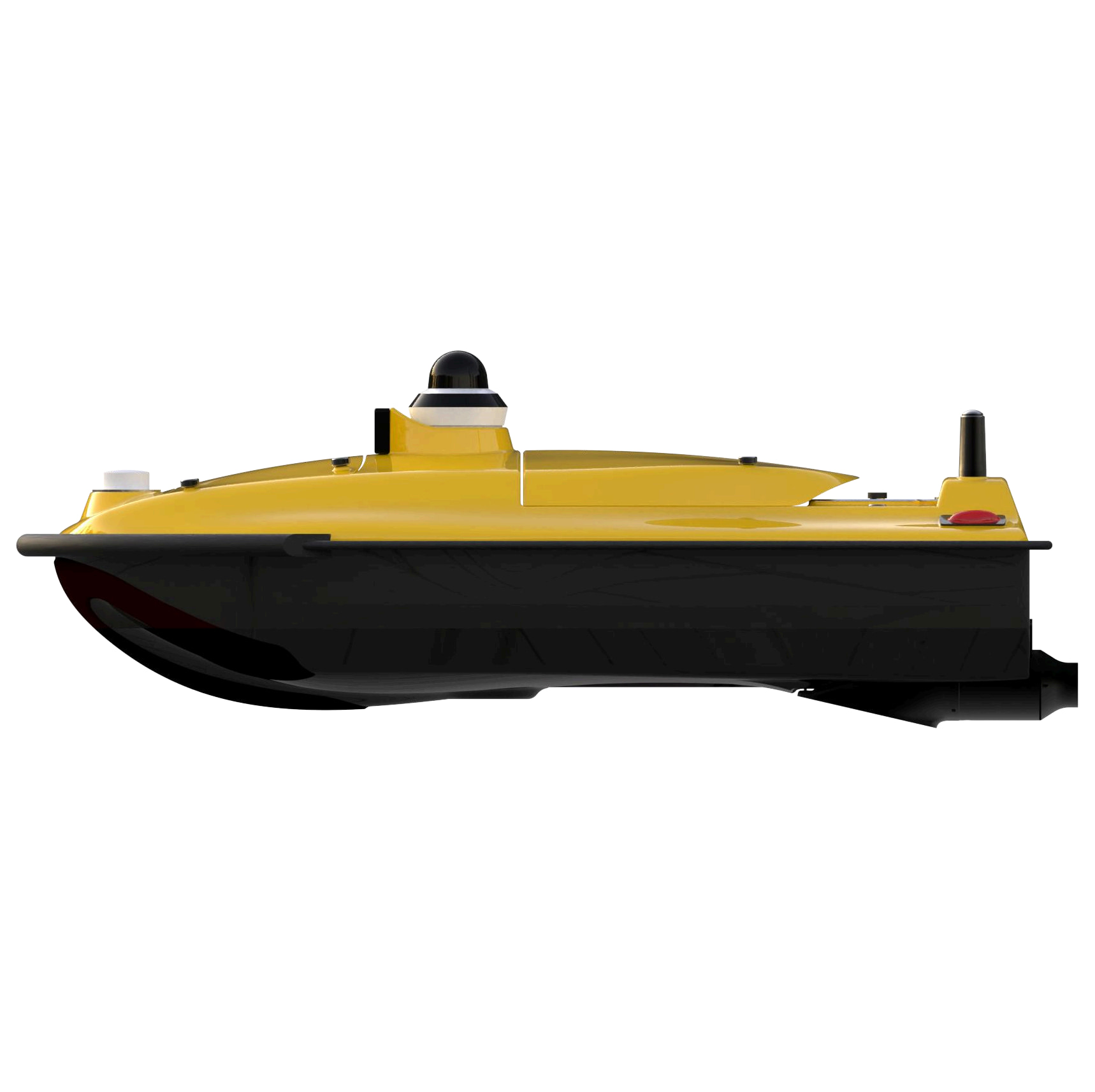

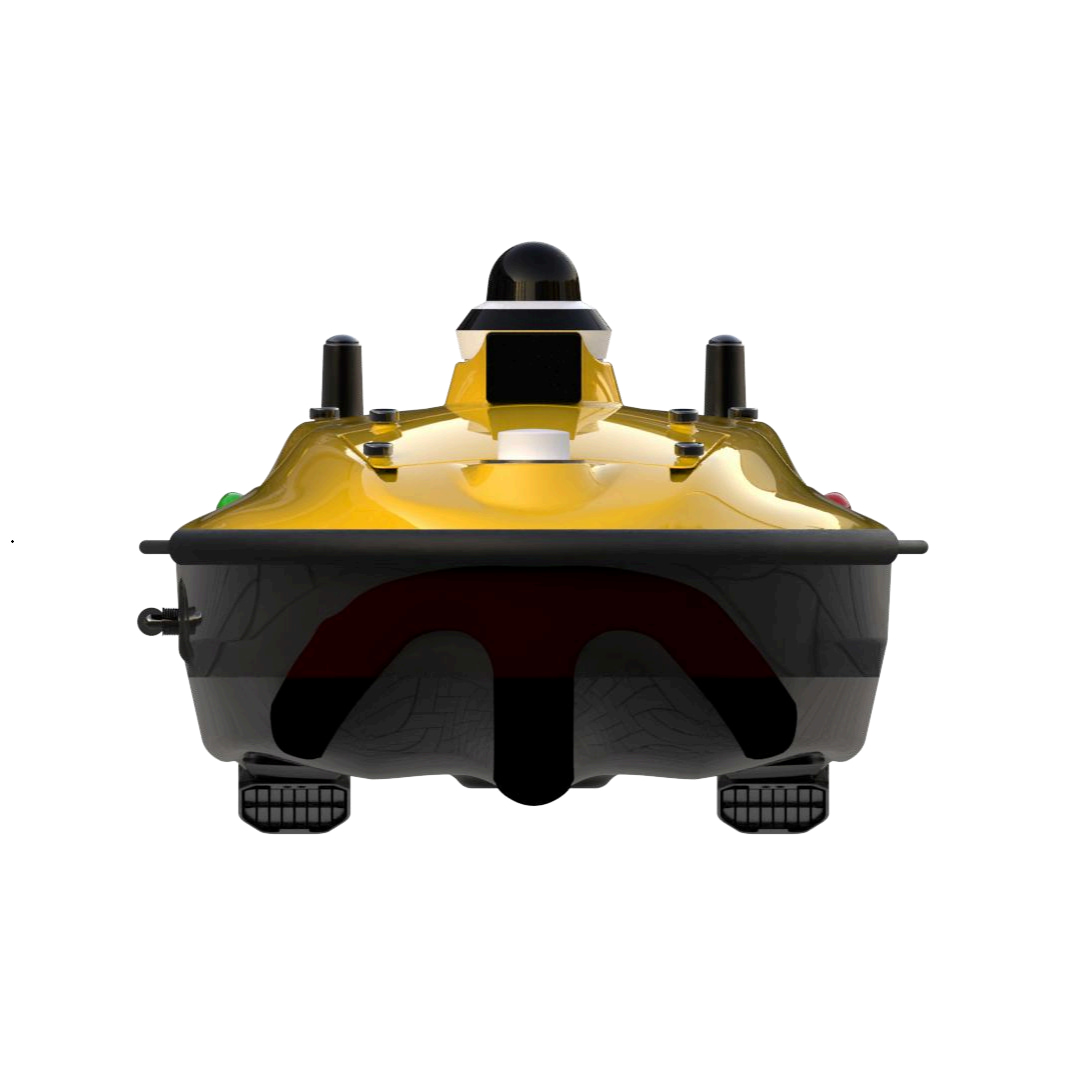

The DADI DUSV 8 is a high-performance, M-Shape monohull Unmanned Surface Vehicle engineered for the most demanding aquatic environments
The DADI DUSV 8 is a high-performance, M-Shape monohull Unmanned Surface Vehicle engineered for demanding aquatic environments. Built with advanced Macromolecular Polyester Carbon Fiber & Kevlar, it provides unmatched durability and anti-wind/wave stability. Featuring a massive 50kg payload capacity, 38km operating range, intelligent obstacle avoidance, and a hot-swappable dual-battery configuration, the DUSV 8 is an autonomous multi-purpose platform for professional marine surveying, environmental tracking, and search & rescue (SAR) operations.
50kg Massive Payload Capacity
Engineered with a high-displacement M-Shape monohull capable of carrying heavy instruments up to 50kg with a shallow 10cm draft.
Carbon Fiber & Kevlar Construction
Formed from macromolecular polyester carbon fiber and Kevlar composite for superior structural integrity, IP67 rating, and resistance against harsh marine environments.
Extended 38km Operating Range
Powered by hot-swappable 33.6V 25Ah dual batteries supporting long-duration missions with up to 7 hours of endurance at 1.5m/s.
Smart 120° Obstacle Avoidance
Integrated 120° × 120° horizontal and vertical radar detection system identifies obstacles up to 20m (expandable to 40m) for safe autonomous navigation.
Weed-Resistant Propulsion
Features semi-embedded ducted thrusters powered by 1100W brushless motors with weed-resistant and easy-clean design.
| Hull & Physical Specifications | |
| Dimensions (L × W × H) | 1.28 × 0.58 × 0.43 m |
| Material & Hull Type | Macromolecular Polyester Carbon Fiber & Kevlar | M-Shape Monohull |
| Weight | 12 kg (W/O Payload & Battery) | 40 kg (W/ Payload & Battery) |
| Maximum Payload | 50 kg (Draft: 10 cm) |
| Wind & Wave Resistance | 4th-Level Wind, 3rd-Level Wave |
| Power & Propulsion | |
| Motor Type & Power | Electric Brushless Motor | Pluggable | 1100W Max Power |
| Steering & Speed | Differential Steering (Supports Reversing) | 4000 RPM | Max Speed: 6 m/s |
| Propulsion Design | Semi-Embedded Ducted Thruster (Weed-Resistant & Easy-Clean) |
| Battery Specification | 33.6V 25Ah × 2 (21700mAh per battery) | Hot-Swap capable |
| Endurance & Range | 3h @ 2m/s | 7h @ 1.5m/s | Operating Range: 38 km |
| Navigation & Intelligence | |
| GNSS Positioning | Dual GNSS Antennas (Positioning & Heading) |
| Camera System | 360° Night-Visible Omnidirectional Camera & AI Camera (Optional) |
| Obstacle Avoidance | Horizontal & Vertical Angle: 120° × 120° | Distance: 0.1 - 20m (Up to 40m) |
| Safety Alert System | Self-Check, Abnormal Speed, Near-Obstacle, Low-Battery |
| Autonomous Return Modes | Low-Battery Return, Tracking Return, Auto Backing, Disconnected Return |

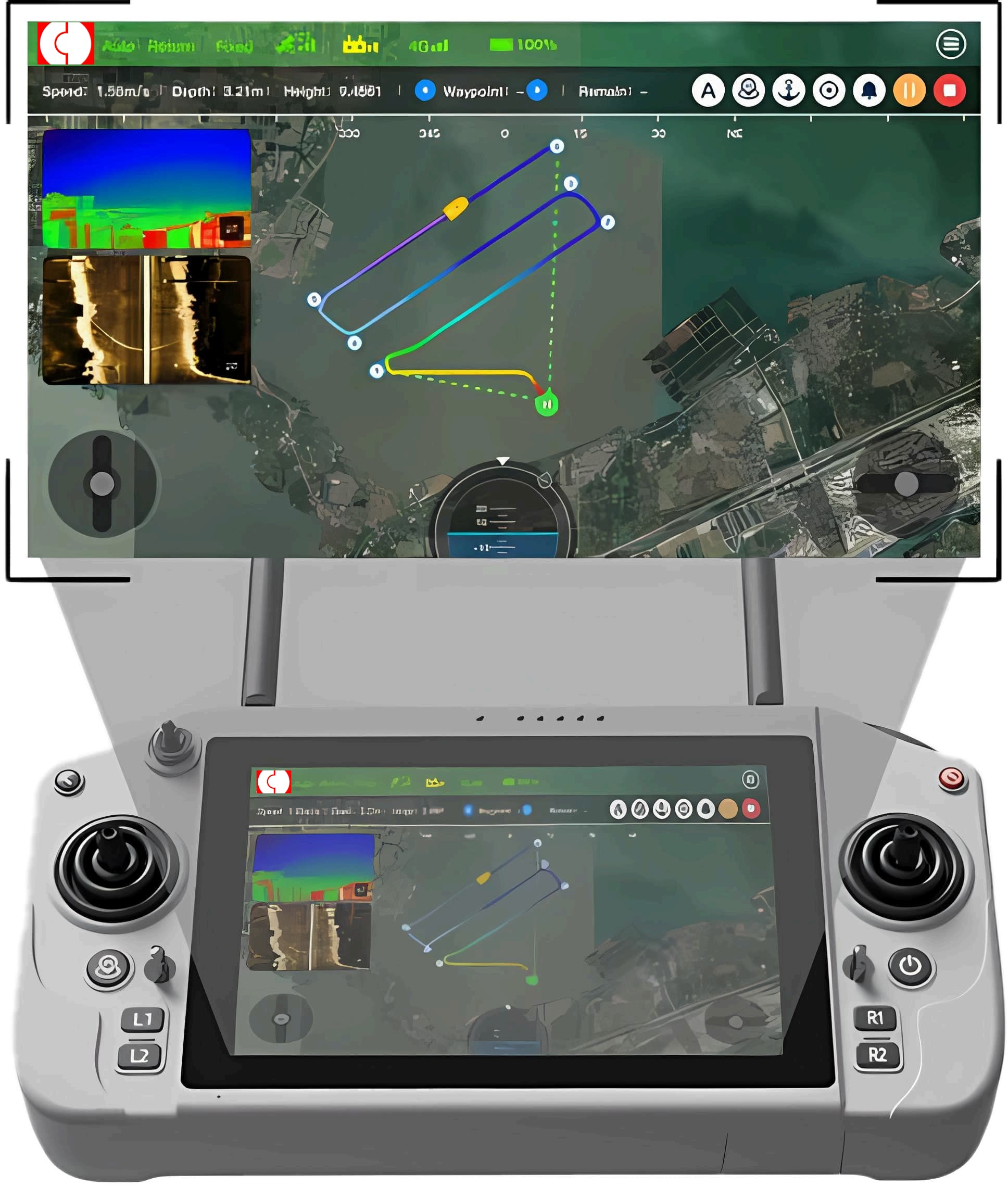

| U-Controller (Base Station) | |
| Screen Display | 12" Touch-Sensitive, Sunlight-Visible (1200 nit) | 1920×1200 Resolution |
| Communication Range | 3 km via 2.4G | Unlimited Distance via 4G Network |
| Battery & Charging | 20000mAh (8h Runtime) | 18W Type-C Fast Charging in 2h |
The platform is ideal for Hydrographic & Bathymetric Surveying (underwater topographic mapping using multibeam/single-beam echosounders), Environmental Protection (carrying multi-parameter water meters, samplers, TP&TN analyzers), and Search and Rescue (SAR) (emergency response via side-scan sonars & 360° night cameras).
The modular bay supports Acoustic Doppler Current Profilers (ADCP), Multi-Beam & Dual-Frequency Single-Beam Echosounders, Side-Scan Sonars, Sub-Bottom Profilers, Multi-Parameter Water Quality Meters/Samplers, Total Phosphorus & Nitrogen (TP&TN) Analyzers, Laser Radars, and Gas Detectors.
Using iSAIL Intelligent Software, the vessel offers multi-route planning, breakpoint continuation, real-time depth/quality visualization, and post-processing echo stacking. Safety functions include automated Return-to-Home during low battery or signal loss, abnormal speed alerts, and 120° obstacle avoidance.
