The XT-03 represents the next generation of 3D perception. It is a Full Solid-State LiDAR sensor utilizing indirect Time-of-Flight (iToF) technology to deliver high-density point clouds without any moving mechanical parts. With a resolution of 1280×960 and a frame rate up to 30fps, the XT-03 offers millimeter-level precision and superior reliability for robots, smart buildings, and security monitoring.
The XT-03 represents the next generation of 3D perception. It is a Full Solid-State LiDAR sensor that utilizes indirect Time-of-Flight (iToF) technology to deliver high-density point clouds without any moving mechanical parts.
With a resolution of 1280×960 and a frame rate up to 30fps, the XT-03 offers millimeter-level precision and superior reliability, making it the ideal solution for robotics, smart buildings, and security monitoring.
Full Solid-State Design
Eliminates mechanical rotating components completely. Utilizes BSI CMOS sensors and VCSEL arrays for significantly enhanced lifespan and shock resistance.
Ultra-Wide Field of View
Offers a massive 120° x 90° FOV, allowing a single sensor to cover a large area and reducing blind spots for AGVs and robots compared to narrow-FOV alternatives.
High-Resolution iToF
Leverages indirect Time-of-Flight technology to output up to 1.2 million points per frame, ensuring high-fidelity data even in complex environments.
Automotive-Grade Connectivity
Equipped with GMSL2 technology and FAKRA connectors, ensuring gigabit-level bandwidth and high signal stability in high-vibration industrial settings.
| Performance | |
| Resolution | 1280 × 960 (Max) / 640 × 480 |
| Frame Rate | 5 FPS - 30 FPS (Adjustable) |

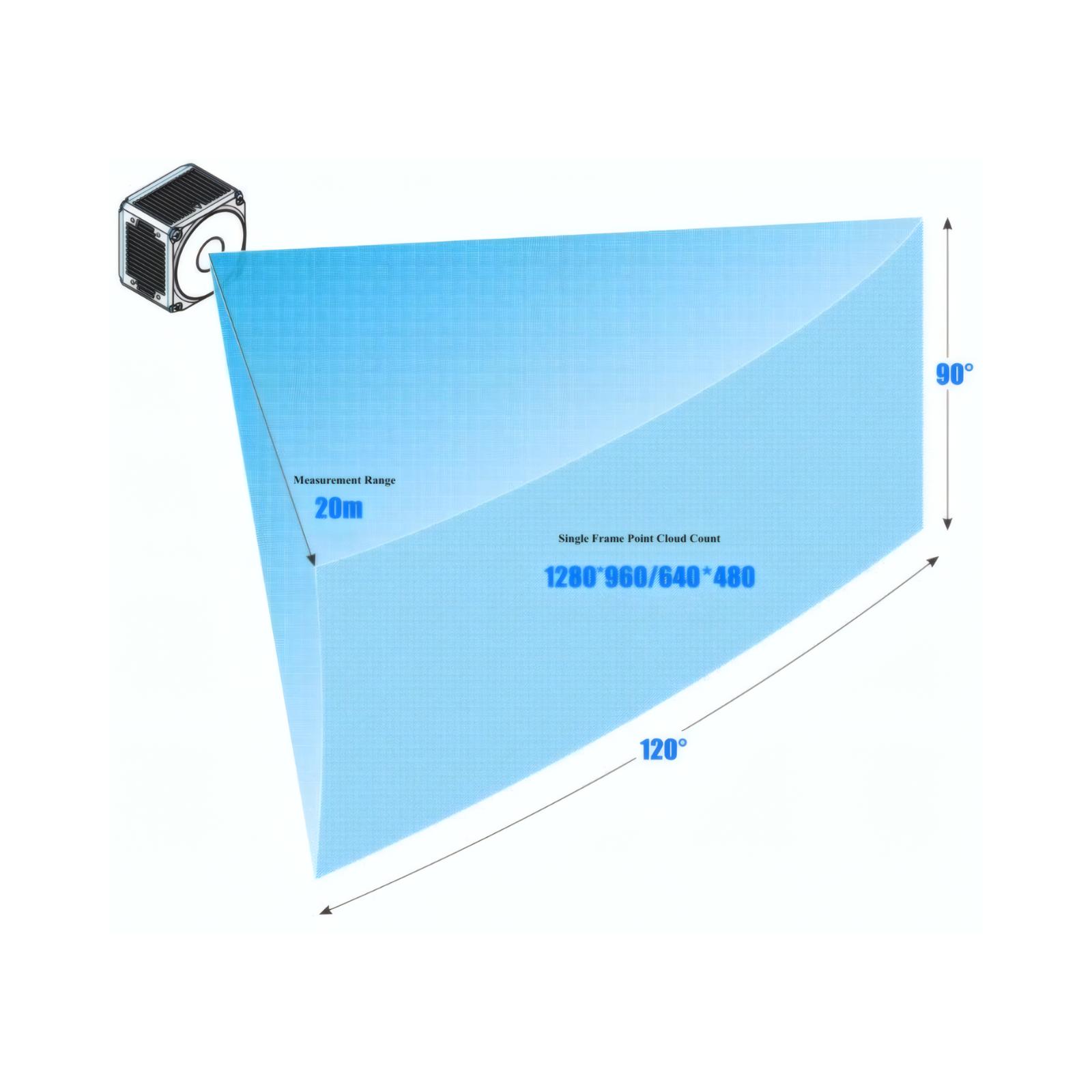

| Field of View (FOV) | 120° (Horizontal) × 90° (Vertical) |
| Detection Range | 0.1m - 20m (Configurable) |
| Point Cloud Rate | ≥ 12,000,000 points/sec |
| Accuracy | < 5mm or 0.5% of depth |
| Electrical & Interface | |
| Interface | GMSL2 + FAKRA Connectors (MAX96717) |
| Power Supply | DC 24V ±5% (PoC),<10W |
| Laser Safety | Class 1 (940nm), Eye-safe (IEC 60825-1) |
| Physical & Environment | |

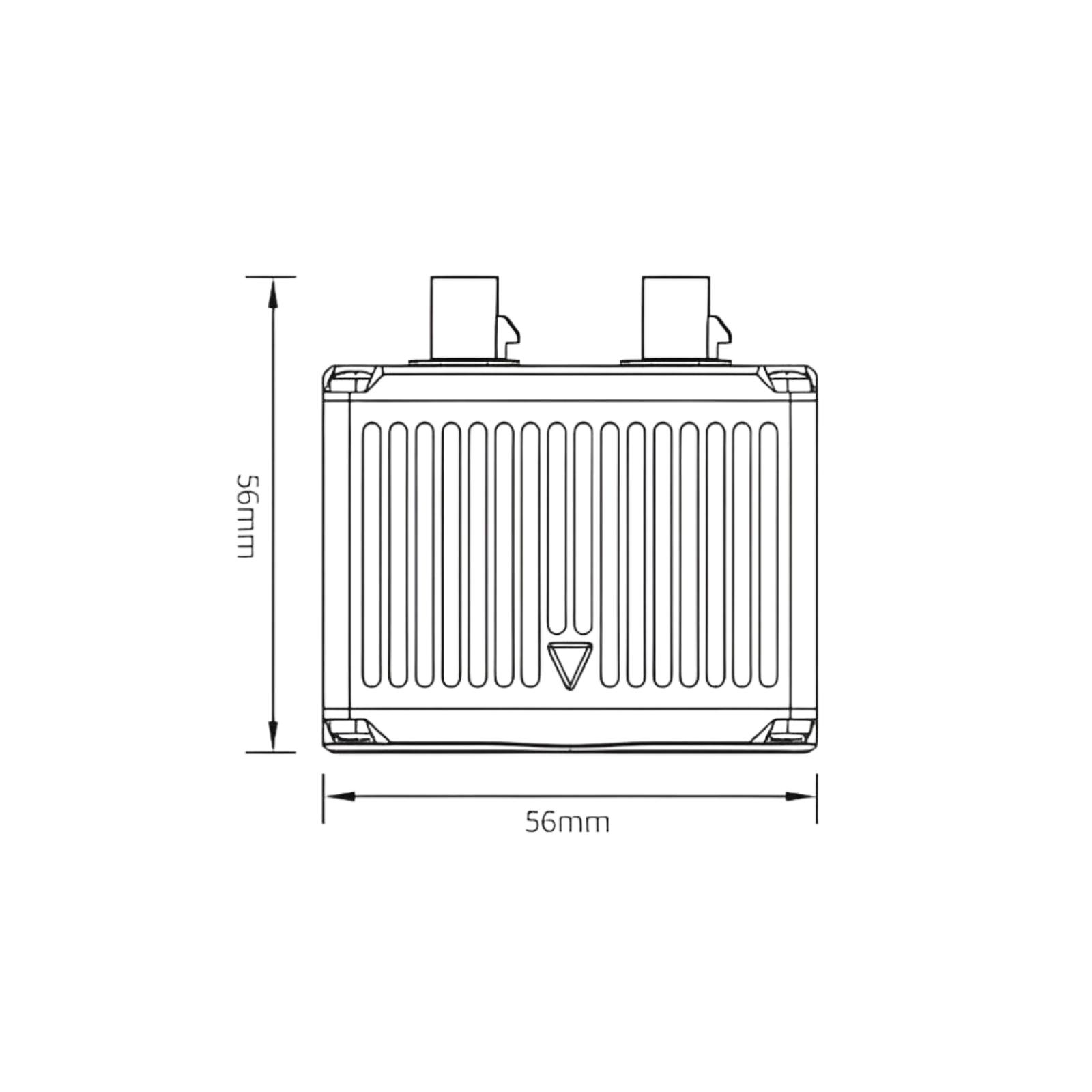

| Dimensions | 56mm × 56mm × 55.5mm |
| Protection Rating | IP65 (Dust tight & water resistant) |
| Ambient Light Resistance | 80,000 lux |
| Operating Temp | -20°C to 60°C |
iToF (indirect Time-of-Flight) uses phase difference to measure distance, providing higher resolution and frame rates at short-to-medium ranges compared to traditional mechanical LiDAR.
No, the XT-03 is a Full Solid-State sensor with zero moving mechanical parts, which significantly improves reliability and lifespan in demanding environments.
Yes, it uses a 940nm VCSEL laser source and is certified as Class 1 Laser Safety (IEC 60825-1), making it completely safe for use around people.
