2" ANGULAR ACCURACY - ACCURATE ENOUGH FOR ANY CONSTRUCTION JOB
DUAL LCD
TELESCOPE RETICLE
10 KEYS TOTALLY
COMPACT
LIGHTWEIGHT BUILD
| Angle Measurement | |
| ACCURACY | 2" (0.6 MGON) |
| READING SYSTEM | ABSOLUTE ENCODER |
| UNITS | DEG / MIL / GON / V % |
| MINIMUM INCREMENT (DEGREE, GON) | |
| 2" MODELS | 1.0" (0.2 MGON) |
| CIRCLE DIAMETER | 74 MM (2.9 IN) |
| Telescope | |
| TUBE LENGTH | 120.4 MM (4.7 IN) |
| IMAGE | ERECT |
| MAGNIFICATION | 30X |
FIELD OF VIEW | 1˚ 30’ |
RESOLVING POWER | 15 SET |
| EFFECTIVE DIAMETER OF OBJECTIVE | 47 MM (1.85 IN) |
MINIMUM FOCUSING DISTANCE | 1.5 M (4.9 FT) |
| LASER POINTER（with optional red/green laser) | COAXIAL RED/GREEN LIGHT |
| RETICLE TYPE | CROSSHAIR |
| STADIA RATIO / CONSTANT | 100 / 0 |
| TILT SENSOR | |
| TYPE | Single-axis (Vertical Compensation) |
| METHOD | LIQUID-ELECTRIC DETECTION |
| COMPENSATION RANGE | ±3’ RANGE |
| RESOLVING POWER | 6" |
| POWER | |
| HOT SWAPPABLE NI-H BATTERY | BDC 1600mAh (ABOUT 10 HOURS) |
| OUTPUT VOLTAGE | 6V |
| GENERAL SPECIFICATIONS | |
| SENSITIVITY OF CIRCULAR LEVEL VIAL ON TRIBRACH | 10’/2 MM |
| TUBULAR | 30”/2 MM |
| CIRCULAR | 8’/2 MM |
| TANGENT CLAMPS | YES |
| INTERNAL PLUMMET | CLASS 2 LASER (1.5MM@ 1.5 M) |
| DIMENSIONS (W X D X H) | 7.0 IN X 6.5 IN X 13.9 IN (180 MM X 166 MM X 355 MM) |
| WEIGHT(APPROX.) | |
| 2”, 3”, 5” MAIN UNIT | 9.0 LB (4.1 KG) |
| DADI'SINCE 1991 THEODOLITE | 0.4 LB (0.2 KG) |
| BATTERY | 3.9 LB (1.7 KG) |
| CARRYING CASE | |
| ENVIRONMENTAL | |
| OPERATING TEMPERATURE RANGE | -20 'C to +45°C |
What's in the Box

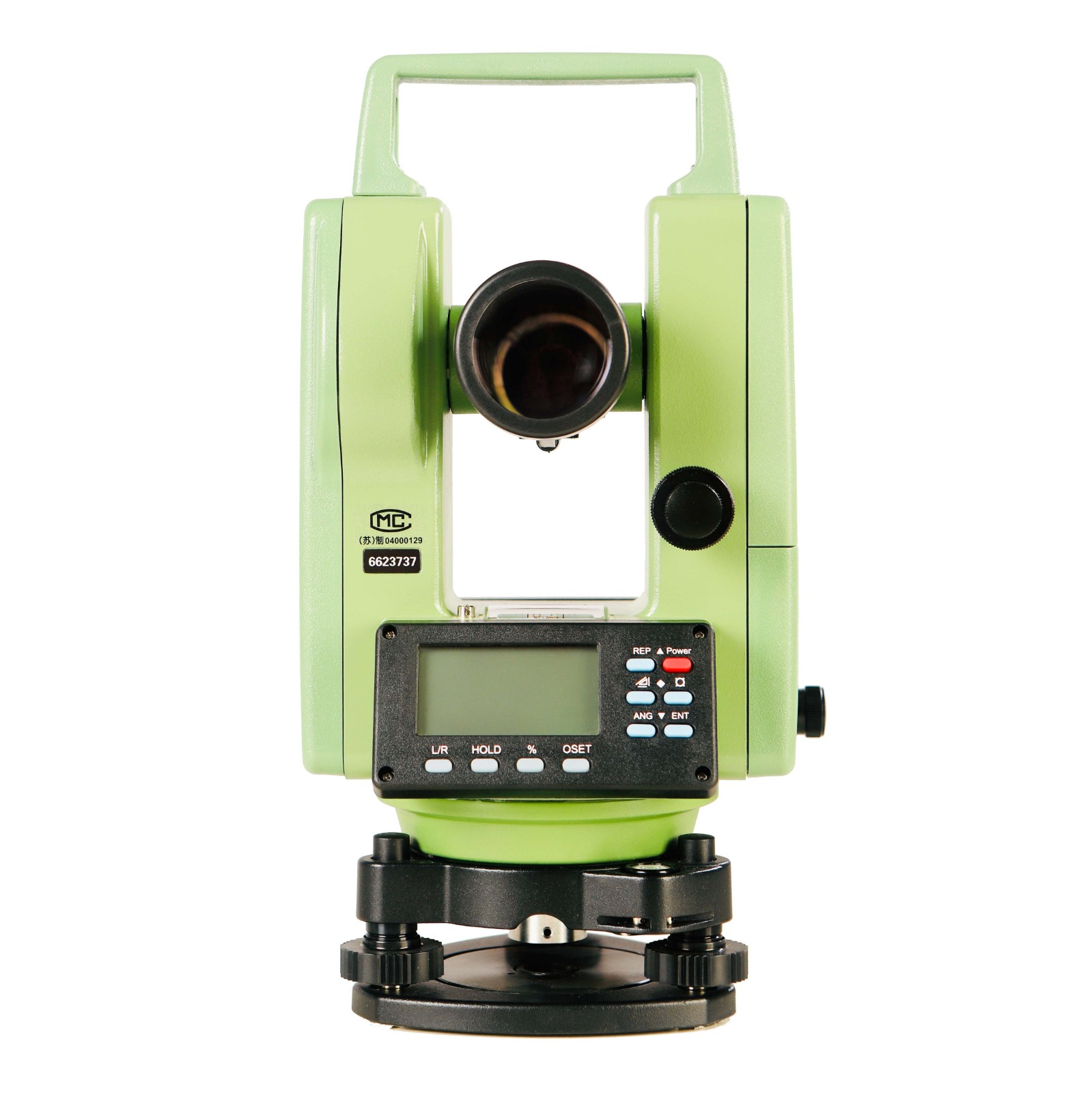

DE3A Digital Electronic Theodolite (2-Second)
Hard Carrying Case
Soft Nylon Key Brush
Toolkit with Cleaning Cloth (For Lens), Screwdriver and 1 Needle
NiMH Rechargeable Battery Pack
5 AA Alkaline Battery Holder
Battery Charger
User Manual
Surveying accessories
Tripod | J-1A |
| |
Staff | 3m |
| |
Prism | AK18-1 |
| |
| Triple | TPS30-Y |  |
